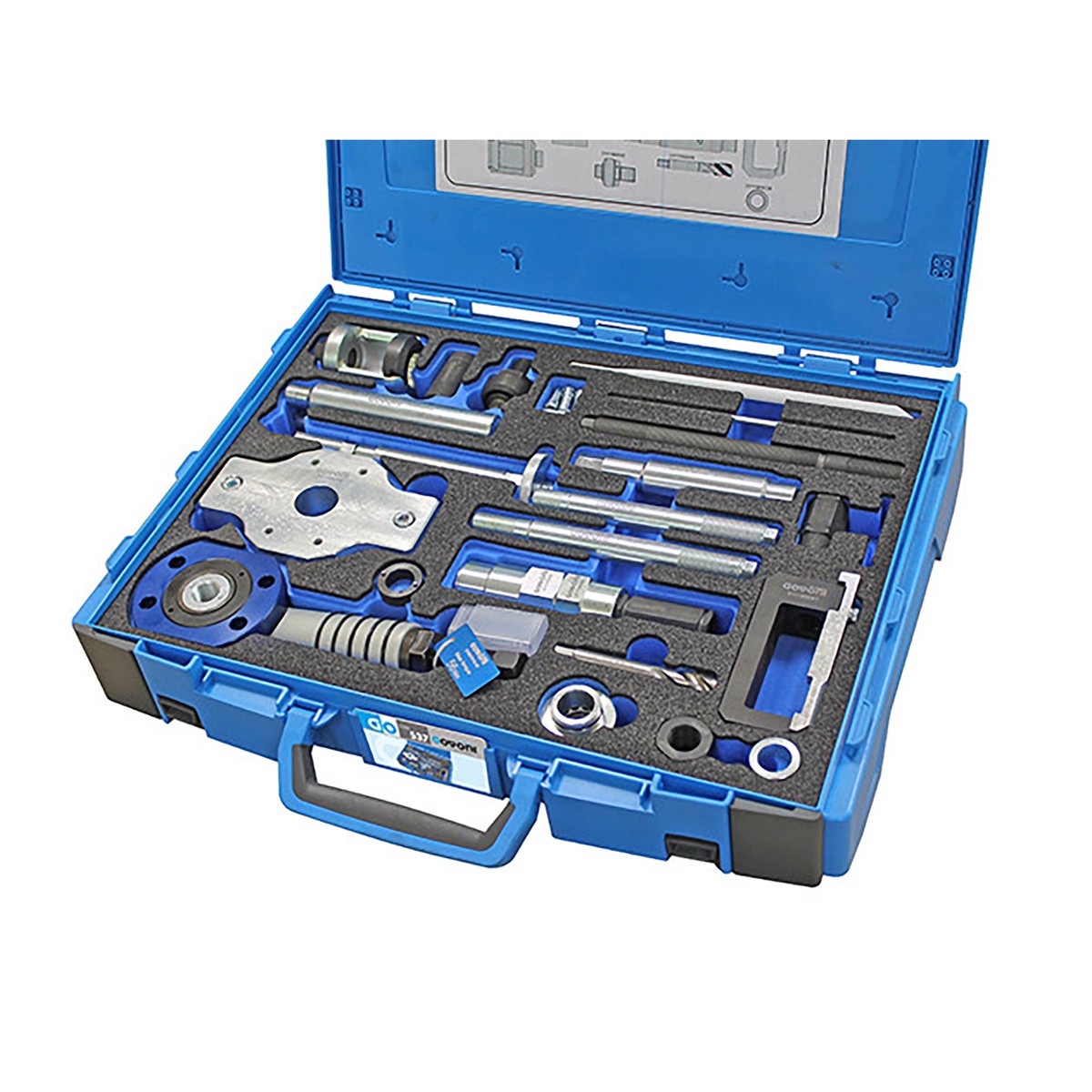

GO537 - Injector Extractor Kit 20 Diesel M9R

GO537 – Injector Extractor Kit 2.0 Diesel M9R

Heavy-duty injector extractor kit designed for the removal of seized, damaged, or broken injectors on M9R 2.0 diesel engines. The system allows extraction in multiple configurations, using mechadraulic force, while the engine-mounted frame ensures secure alignment and controlled operation.

• Extractionof the injector with electrical connector
• Extractionof the injector without electrical connector
• Extraction of the broken injector

Specification

• Force: 12 ton (Mechadraulic cylinder)
• Stroke: 8 mm
• Dimensions: 80x260x45 mm
• Pressure: max. 700 Bar
• Hole: 21.5 mm
• Driving torque: 56 Nm
• Weight: 1,65 kg
• Grease temperature range of use: from -25C to 80C
• Material: aluminium
• Adaptors: M10/M12/M14/M16/M18

Applications

• BrandRenault, Nissan, Opel
• Motor2.0 diesel
• Engine codeM9R
• InjectorsBosch CR, Bosch Piezo
