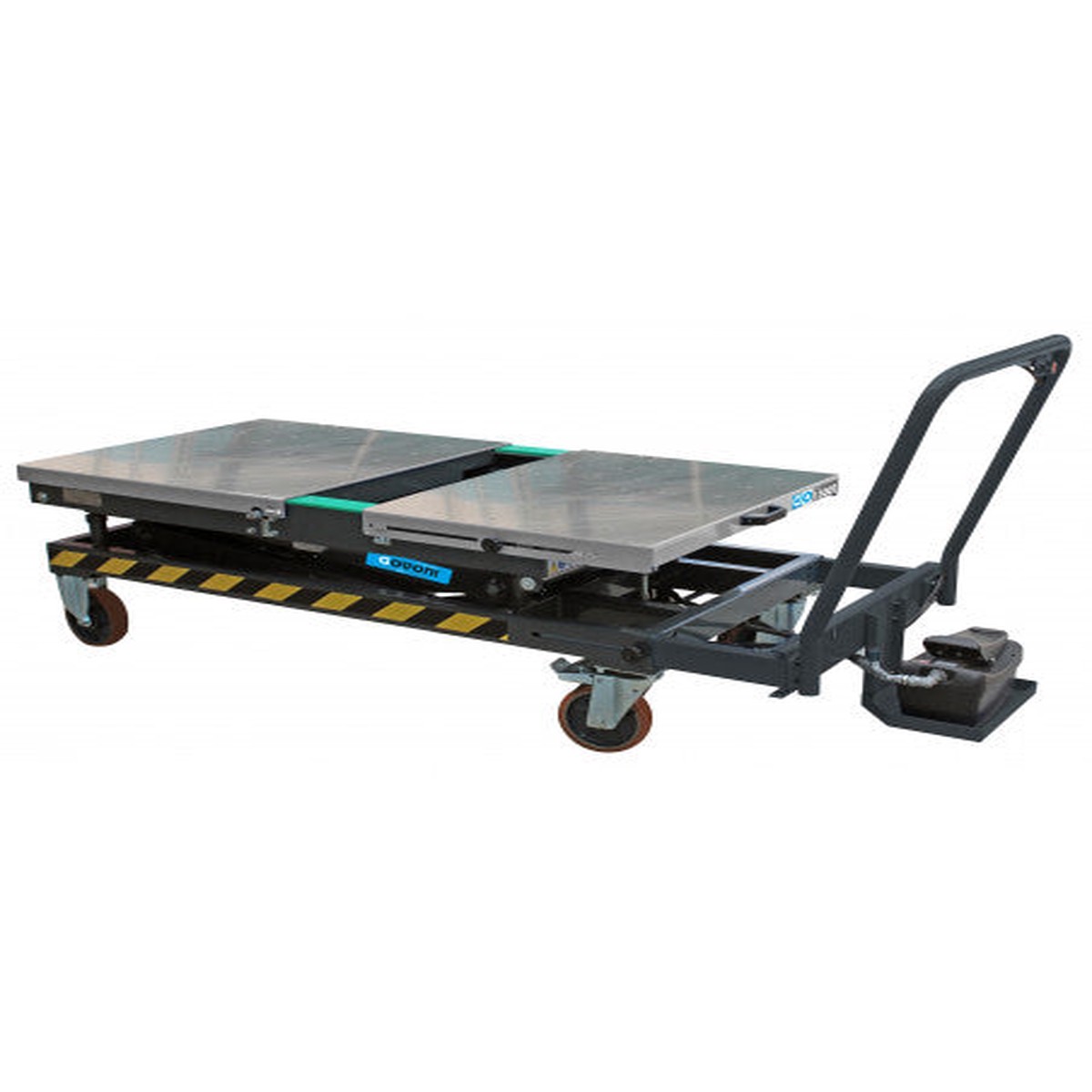

The GO1500T EV Battery & Transmission Lifting Table is a heavy-duty pneumatic lifting platform designed to safely remove, install and transport electric vehicle battery packs, transmissions, engines and other large vehicle components. With an impressive 1500kg lifting capacity, this versatile workshop lifting table provides the stability, precision and flexibility required for both EV servicing and conventional vehicle repair operations.

As electric vehicle servicing becomes an increasingly important part of workshop operations, specialist lifting equipment is essential for safely handling high-voltage battery packs. The GO1500T combines advanced battery handling functionality with the versatility needed for transmission, engine and chassis component removal, making it a valuable investment for future-focused workshops.

Key Features & Benefits

1500kg Lifting Capacity

Designed to safely support heavy EV battery packs, automatic transmissions, engines and chassis assemblies. The high-capacity platform makes it suitable for a wide range of automotive, commercial vehicle and workshop applications.

Ideal for EV Battery Removal & Installation

The sliding platform design allows convenient access during battery removal and installation procedures, helping technicians safely position and manoeuvre battery packs during service operations.

Pneumatic Operation

Powered by compressed air, the lifting table provides smooth, controlled lifting and lowering with minimal operator effort, helping improve workshop productivity and safety.

Extendable & Tilting Platform

The tabletop can be extended by 200mm and tilted by 3 using a mechanical adjustment system, allowing technicians to accurately align components during removal and installation procedures.

Lateral Position Adjustment

The platform can be moved laterally by up to 30mm, enabling precise positioning underneath vehicles without the need to reposition the entire lifting table.

Compatible with Workshop Accessories

Integrated threaded mounting points allow the installation of support brackets, lifting fixtures, battery supports, protective mats and specialist workshop accessories for a wide variety of applications.

High Ground Clearance

Designed to work alongside vehicle lifts and workshop cranes, making it suitable for a wide range of workshop layouts and service procedures.

Integrated Safety Features

A mechanical anti-lowering safety wedge automatically locks the platform when not in operation, providing additional security when working with valuable and heavy vehicle components. Button-controlled lowering further enhances operator control and safety.

Typical Applications

The GO1500T is suitable for:

Electric vehicle battery pack removal and installation
Hybrid vehicle battery servicing
Automatic gearbox removal and fitting
Engine removal and installation
Chassis component handling
Commercial vehicle maintenance
EV workshop operations
General lifting and handling tasks within automotive workshops

Its multi-purpose design allows workshops to maximise equipment utilisation across a wide range of repair and maintenance procedures.

Specifications

Opening Table -
Extendable Table (200mm)
Tilting Table (3)
Shifting Table (30mm)
Extendable Handle (225mm)
Max Capacity 1500 KG
Time To Go Up 80 s (no load) / 150 s (full load)
Time To Go Down 70 s (no load) / 15 s (full load)
Power Supply 6/8 bar

Designed for the Future of Vehicle Servicing

As workshops expand their electric vehicle capabilities, investing in specialist battery handling equipment is becoming increasingly important. The GO1500T provides a safe, practical and versatile solution for handling EV batteries while retaining the flexibility to support traditional transmission and engine work.

Whether servicing electric vehicles, hybrid vehicles, passenger cars or commercial vehicles, the GO1500T delivers the lifting capacity, precision adjustment and workshop versatility required by modern technicians.
